illumaesthetic

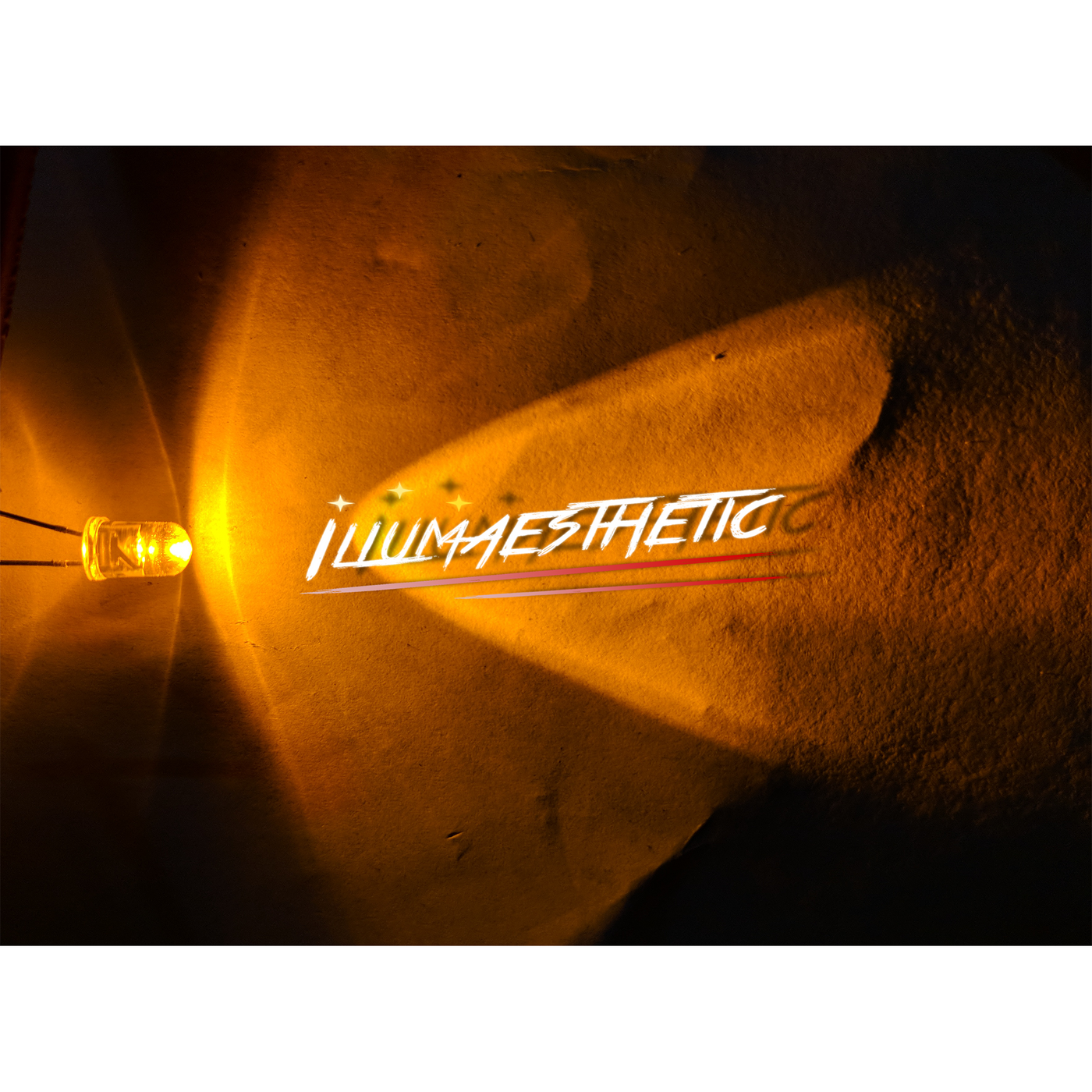

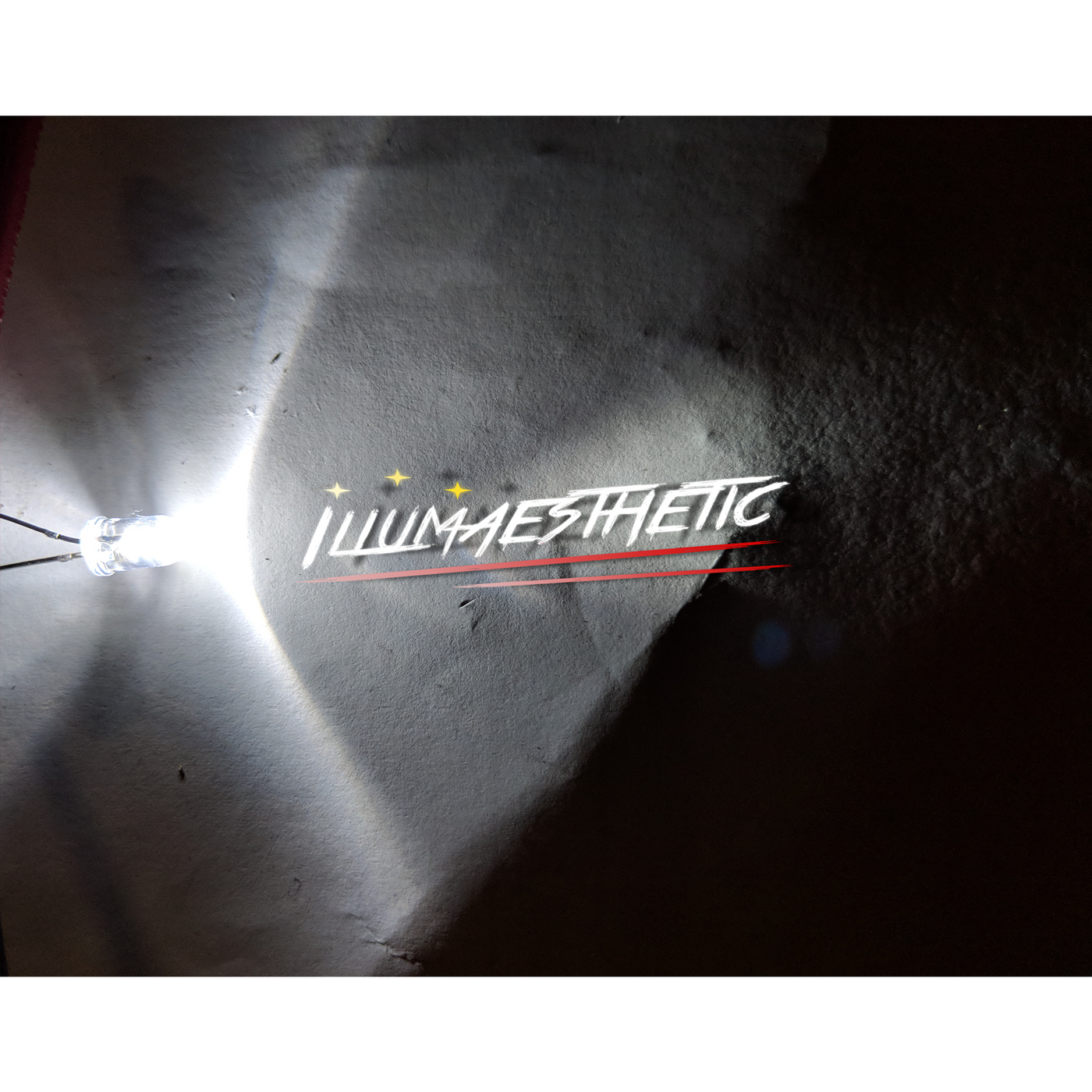

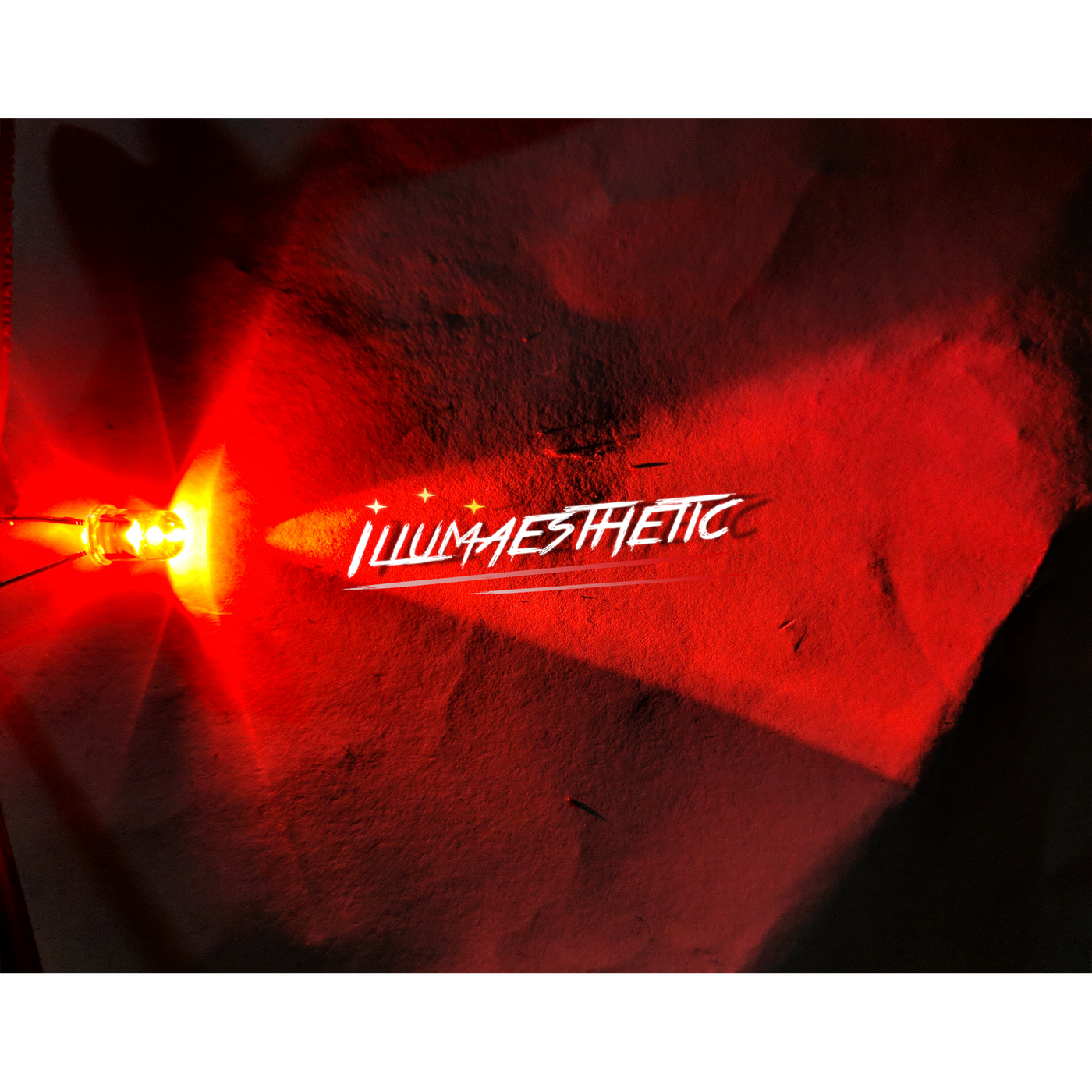

5mm LEDs ILLUMAESTHETIC-SPEC (multiple colors, bulk purchase)

  • Sale
  • Regular price $80.00


One of the most important pieces when it comes to building tail lights is component selection. Making sure that the LEDs you select are durable while making sure they don't break the bank is extremely important, especially when name-brand options are charging as much as 20 cents an LED! Illumaesthetic is now releasing their LEDs to the public, as they were originally a special order item spec'd out specifically for them.

These are NOT the same LEDs as the ones you get on eBay and Amazon, why take the risk and waste a weeks worth of work on bad LEDs? These LEDs have been proven on illumaesthetic products for over a year on regularly driven cars, meaning you can have peace of mind knowing you don't have to worry about component quality.


Product Features:

1. Produced exclusively for illumaesthetic, now available to the public
2. Expected life span - ~100,000 hours
3. Sold in bags of 1000 pcs, for smaller quantities, please go here.
6. Ultra-bright, low temperature
7. Low power consumption
Specifications:
1. Input Voltage: 2.0-2.2V DC (red & yellow) 3.1-3.3V DC (white)
2. Forward Current: 20 mA
2. Viewing Angle: 30 - 35 degrees
3. Intensity - 23,000 (red/yellow) - 25,000 (white) mcd

Notes:
These LEDs are NOT DOT approved. Please check with your local laws for compliance.
For maximum shelf life, make sure they are stored in a cool, dry area, and reseal the bag after opening.
For large wholesale orders, please email us directly.
